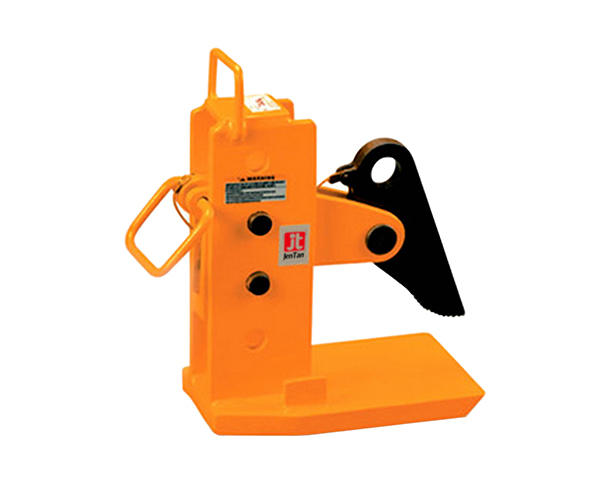

LC-H4橫吊
1.Suitable for lifting and transport of multi steel plates.2.Manufacturd from high quality carbon steel.
3.Avoid snatch or shock loading.

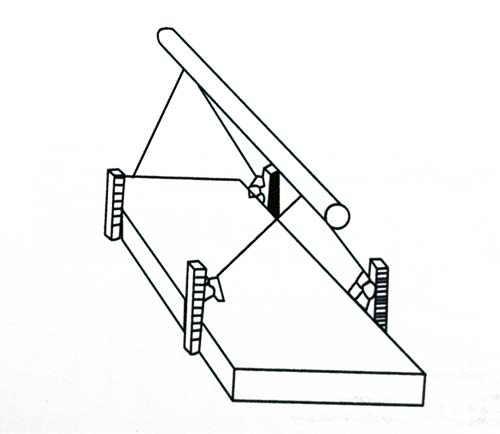

4.The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples.
5.According to the plate can be suspended adjust the thickness of the clamp position of the tongue.
| 參數(shù)表 LC-H4 TYPE LIFTING CLAMP | |||
| 型號(hào) | 額定載荷 | 鉗口寬度 | 凈重 |
| Model | Rated Capacity(t) | Jaw opening(mm) | N.W(Kg) |
| 3T | 3 | 0-180 | 19 |
| 4.5T | 4.5 | 0-240 | 26 |
| 6T | 6 | 0-240 | 40 |
| 8T | 8 | 0-240 | 51 |
| 15T | 15 | 0-240 | 72 |
