| BUOY CHAIN | |||||

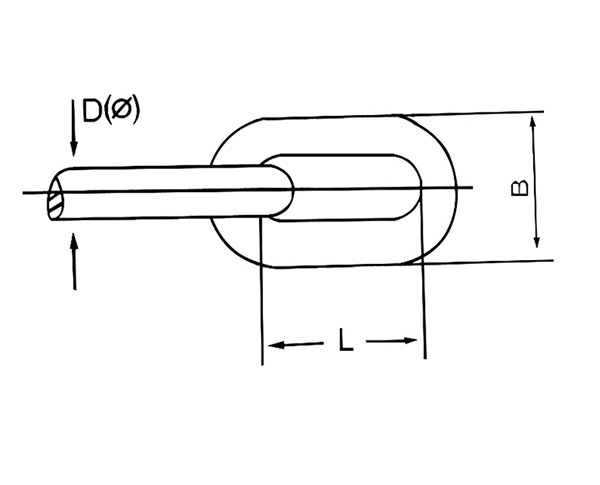

| 鏈徑 D | 外長(zhǎng) L | 外寬 B | 拉力負(fù)荷 | 破斷負(fù)荷 | 重量 |
| DIAMETER | OUTSIDE LENGTH | OUTSIDE WIDTH | PROOF LOAD | BREAKING LOAD | WEIGHT |
| MM | MM | MM | KN | KN | KG/M |
| 8 | 46 | 28 | 11.76 | 23.52 | 1.30 |
| 9 | 52 | 31 | 14.88 | 29.76 | 1.62 |
| 11 | 63 | 38 | 22.54 | 45.08 | 2.44 |
| 13 | 75 | 45 | 31.30 | 62.72 | 3.41 |
| 15 | 87 | 52 | 41.16 | 83.32 | 4.52 |
| 17 | 98 | 59 | 53.90 | 107.80 | 5.84 |
| 19 | 110 | 66 | 66.64 | 133.28 | 7.27 |
| 22 | 127 | 76 | 90.16 | 180.32 | 9.74 |
| 25 | 144 | 86 | 115.64 | 231.28 | 12.57 |
| 28 | 161 | 97 | 145.04 | 290.08 | 15.82 |
| 31 | 179 | 107 | 178.36 | 356.72 | 19.38 |
| 34 | 196 | 118 | 214.62 | 429.24 | 23.23 |
| 37 | 213 | 128 | 253.82 | 507.80 | 27.57 |
| 40 | 230 | 139 | 298.90 | 597.80 | 32.22 |
| 46 | 264 | 159 | 395.92 | 791.84 | 43.18 |
| 53 | 305 | 184 | 505.68 | 1011.36 | 56.50 |
